Stainless Steel Square Woven Mesh manufacturer from China Anping County Zishen Metal Wire Mesh Products Co., Ltd.

Payment Terms:	T/T,L/C
Place of Origin:	Hebei, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Means of Transport: Ocean,Land,Air

Packing: At customer's request

Production Capacity: 1000 square meters per day

Delivery Date: At customer's request

Steel Square Woven Mesh, ss Wire Mesh, ss Square mesh

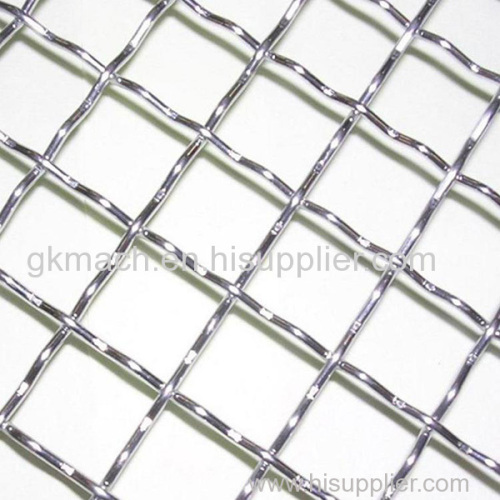

Stainless Steel Square Woven Mesh

Product Details

Stainless Steel Square Woven Mesh, in either woven or welded construction, uses include screen enclosures, railing infill panels, fan guards, filtration systems, and many other applications

We could produce versatile, easily adaptable product in various opening and mesh sizes, thicknesses, and primary materials to satisfy a wide range of uses and custom design ideas.

Stainless Steel Square Woven Mesh mainly includes regular Plain /Twill Weave Mesh; ranged from 1mesh to 635mesh; "Tensile Bolt" Bolting Cloth; Crimped Mesh and Welded Mesh.

Regular Plain /Twill Weave Mesh and "Tensile Bolt" Bolting Cloth are normally for industrial applications.

All the Square mesh quality control based on ASTM E 2016-15 Standard and raw material based on ASTM A580-14 standard.

Raw material Grade: 304, 304L, 316, 316L, 430, etc.

General uses in different applications:

· Particle separation and filtering

· Particulate sifting

· Safety and equipment protection.

Detailed Specifications:

Square Hole Stainless Steel Wire Mesh
Mesh count	SWG	Aperture	Effective section area	Weight
Mesh count	(Gauge)	(μm)	(%)	(kg/㎡)
20	32	1000	62	0.73
24	29	720	46.07	1.39
30	35	640	56.55	0.66
40	35	430	44.8	0.88
50	37	250	35.81	0.87
60	36	234	30.38	1.08
70	38	320	34.41	0.79
80	40	200	38.69	0.58
100	42	150	36.76	0.5
120	46	149	51.34	0.22
140	46	120	44.8	0.25
150	45	100	34.41	0.37
180	46	80	33.04	0.32
200	46	74	31.06	0.31
250	48	60	36.76	0.2
300	48	40	27.83	0.24
325	48	40	23.83	0.26
350	49	37	26.8	0.21
400	49	30	27.83	0.18
450	49.5	28	25.4	0.18
500	49.5	30	25.79	0.16
550	49.5	26	32.14	0.11
600	49.7	25	42.71	0.085
635	49.9	25	42.71	0.07
